UK Module

This optional module adds extra functionality to meet the needs and requirements of ARCs in the UK. Remote Reset Codes, Confirmed Alarms, and URNs are all included in this module.

Alarm Reset Codes

The purpose of Alarm reset codes is to reduce false alarms. When the panel activates, it will not activate again until it has been reset.

To reset an alarm, the alarm panel will display a Prime code, this is entered into Patriot and a reset code for the panel is then generated. The software records a log of all the reset codes generated for this alarm panel.

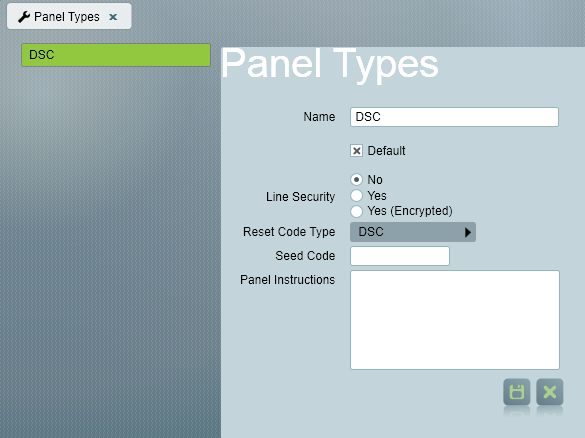

Panel Type Maintenance screen

Panel Maintenance Screen, accessed from Maintenance->Clients->Panel Types

Panel maintenance can be accessed from the Maintenance->Clients->Panel Types menu option. Each client should have a panel selected on the Maintenance tab of the client screen. New panel types can also be added using the panel type selector on this tab if needed.

Each panel type is assigned a reset code type. The reset code type must match with the type of alarm panel. For example, DSC panels should be set to use the DSC reset code type. Some reset code types also have a seed code. This seed code is supplied by the alarm panel manufacturer. The seed code should be entered in under the Reset Code Type field, if required.

Generating a reset code

Confirm the following panel details have been correctly configured:

  1. Check that the client has the appropriate alarm panel assigned.
  2. Check that the alarm panel has the appropriate Reset Code Type assigned.
  3. Check if a seed code is required.

A Reset code can be generated from the Activation report window or the Client maintenance window (Maintenance tab), by clicking on the Reset Code button.

Reset code button

This will display the alarm reset code window. The operator needs to request the Prime Code from the person on site. They then enter the Prime Code, and a note explaining the reason for the reset code. Then pressing the Generate Reset Code button will display a Reset Code, and log this code against this client.

The Reset code can then be given to the person on site, who can now reset the alarm panel.

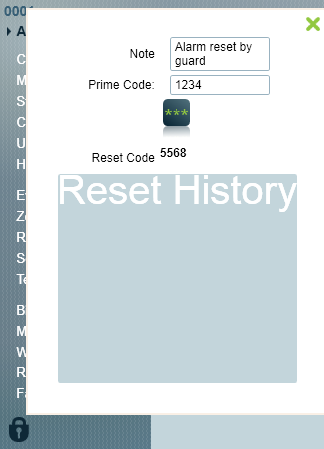

Reset Codes screen
Reset Code window opened from Activation Report screen, showing generated Reset Code.

Confirmed Alarms

In the UK there is a requirement that police are not called to an activation unless the alarm is confirmed, and the client has a valid URN number. Patriot handles this by using Site Status to filter the police out of the response plan until the alarm has been confirmed.

Please refer to Confirmed Alarms for more information and setup instructions.

Note that Patriot has a Site Status option which allows one site status to automatically transfer to another after an expiration period. It is a common UK setup to put a site into "Soak Period" status for a couple of weeks when first setup. Then change to the confirmed alarm status after two weeks. When setting the site status, you can specify the ID of the site status that it will be switched to when the current site status expires.

URN

The URN for relevant authorities can be displayed on the activation window, so it is immediately available during response. It appears next to the particular user in the response plan.

When a user is assigned to a client, their default URN can be entered. When this user is assigned in a response plan, this default URN is stored in this response plan, but can also be changed for this particular response plan (by double clicking on the user in the setup response plan window, which displays the edit dispatch instructions window). Changing the default URN will only affect new additions to response plans. Any users already assigned will be unaffected. In some cases Police can be allocated a separate URN for Panic Attack alarms and Intruder alarms. In this case it will be necessary to override the default URN for one or the other of these action plans, for the police user.

False Analysis Report

The NACP10 False Analysis report is required for BS5979 ARC and is included as part of the UK Module. The False Analysis report can be run manually or automatically from the Patriot -> Reports menu in the same manner as standard Patriot reports. The report should be run on a monthly basis as per the standard, but it can also be run on longer or shorter periods in which case monthly figures will be extrapolated from the chosen period.

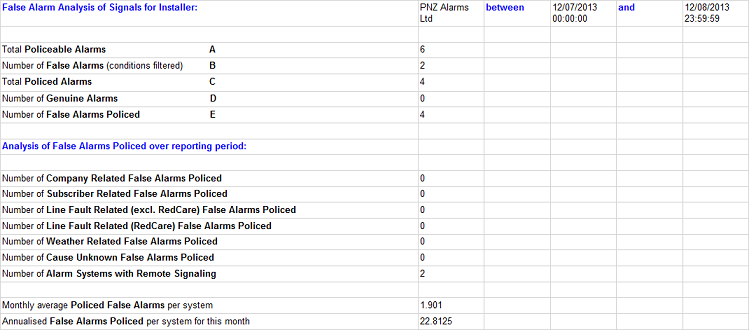

False Analysis Report
Example output of the False Analysis report run over a month for the PNZ Alarms Ltd. installer user.

Definition of terms used in the False Analysis report:

Because many of the terms used in the False Analysis report are dependent on the activation reason set for any particular alarm activation, it is crucial that following list of activation reasons are configured. Activations reasons are configured in Patriot from the Maintenance -> Activations -> Activation Reasons menu item.

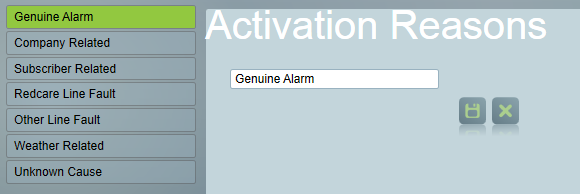

False Analysis Report Reasons
The False Analysis report depends on this preset list of activation reasons, only the first letter of each reason is matched for legacy system support.

Reason Analysis Report

There is a Reason Analysis Report available for download, which contains extended summary information, including percentages of alarms responded to or completed within certain time limits.

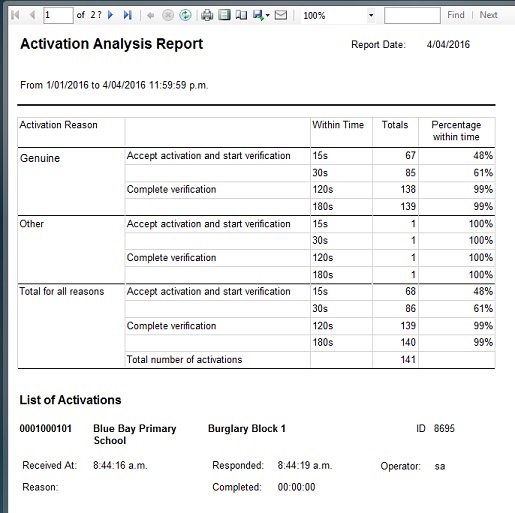

Reason Analysis Report sample

Click the link below to download:

Reason Analysis Report With Completion times.rdlc

When importing, set the Report Type to ReasonAnalysis.

See the Custom Report Layouts documentation for more info on how to customise and import reports.
