Add a new
instance of your chosen SMS Gateway task variant by selecting it from the Task
Type drop down list.The SMS Gateway tasks allow outbound SMS capability from Patriot as an alternative to the GSM module. These tasks use an HTTP SMS gateway to send manual and automated SMS messages to cellular phones and other devices which support SMS.
There are a number of advantages over the GSM module, and is our recommended product for many enterprise scale customers.
Patriot has five different SMS Gateway task variants:
All SMS Gateway task variants can be run on any machine running the Patriot Task Service. Ordinarily, the task should run on the primary Patriot server.
System Menu Item→Tasks → Task Settings
Please read TASK SETTINGS for general information about adding tasks.
Add a new
instance of your chosen SMS Gateway task variant by selecting it from the Task
Type drop down list.
Click the next
button to continue. The SMS Gateway task settings form will be displayed.

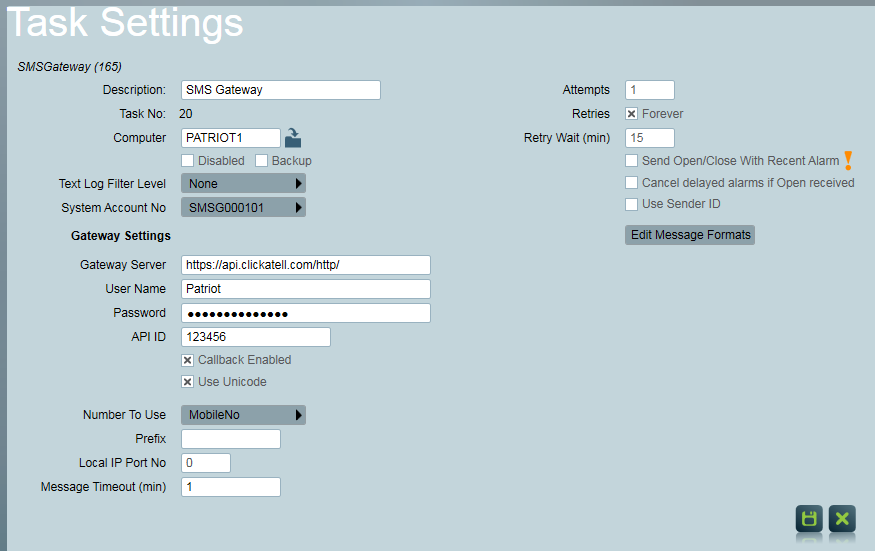

SMS Gateway task settings form - many settings are common between Patriot's
various messaging tasks.
Note: not all task settings will be available for every SMS Gateway task variant.
Enter a Description of the task, e.g. Clickatell SMS Gateway
The Task No. will default to the next free task number.
Select the Computer that this task is to be run on. This will default to the computer you are currently on. The chosen computer must have internet access.
Backup: Check this box if you wish this task to be defined as a backup task.
Text log Filter level can be use for task troubleshooting purposes. It should be left to the default None.
Enter a System Account No. The system account number is used to log any task errors and other system generated signals. The default is SMSG000101. If this account does not already exist you will need to set it up as a template under Maintenance -> Clients -> Templates, and import the System Generated Event Types.
Gateway Settings:
Gateway Server is the HTTP API address of the SMS Gateway. For Clickatell and SMS Global gateways always use the default value. HTTP/S port should be specified if different from the default 80/443 e.g. http://mgateserver:8100
User Name (Not required for SMS Gateway Platform) assigned to your online SMS Gateway account
Password (Not required for SMS Gateway Platform) assigned to your online SMS Gateway account
API Key (SMS Global only) your SMS Global API Key. Refer to the SMS Global Gateway section for more information.
Secret (SMS Global only) your SMS Global API Secret Key. Refer to the SMS Global Gateway section for more information.
API ID (Clickatell gateways only). Assigned to your online SMS Gateway account
Callback Enabled (Clickatell and SMS Global gateways only). Determines if the gateway provider should send final success/failure notifications when the message has been processed. See below for the additional setup required for this.
If Callback Enabled is turned on:
For Clickatell Platform gateway Local IP Port No should be set to a free port on the Patriot Task Server Machine. This port must be configured to accept connections, and routed correctly from your external network firewall. Depending on your server setup, you may also need to add an HTTP Namespace Reservation on the selected port.
For SMS Global gateway Callback URL should be set to an HTTP URL which SMS Global can use to HTTP postback to your Patriot Task Service. The URL (e.g. http://202.27.212.88:8201) should specify a TCP port which should be set to a free port on the Patriot Task Server Machine. This port must be configured to accept connections, and routed correctly from your external network firewall. Depending on your server setup, you may also need to add an HTTP Namespace Reservation on the selected port. Refer to the SMS Global Gateway section for more information.
Use Unicode Clickatell gateways only. Not required for SMS Gateway Platform. You must use Unicode if you need to send characters from outside the standard GSM set (essentially the Latin set). When using Unicode the effective character limit per message is halved. To compensate for this Patriot allows Unicode message concatenation (up to two messages) which gives a max Unicode message length of 140 characters. Be aware that your SMS gateway account will be charged for 2 messages when sending long Unicode messages (between 70 and 140 characters).
Gateway Provider (UFone and mGate gateways only). Select your gateway provider.
Sender ID (SMS Global, UFone and mGate gateways only). For UFone and mGate gateways this is the Sender ID for your gateway account. For SMS Global gateways this is the number from where your SMS should appear to come from, and this number must first be registered to your SMS Global account.
Header Message is short text message prepended to all automated SMS messages
Number to Use specifies which user contact number to use when sending automated messages
Prefix is prepended to the destination number of all automated SMS messages - usually a country or area code
Attempts is the maximum number of times the system will attempt to send an SMS message if the first attempt is not successful. If all attempts fail, the system will wait the time specified in the Retry Wait field before trying again. This cycle will be repeated a maximum number times as set in the Retries field. Check the box to continue trying indefinitely.
Send Open/Close With Recent Alarm
Causes any set and unset signals received from a client to trigger automated messages to response members when received within a short period Within Time (Min) of an alarm event, the time can be set in System Wide Settings -> Data Service Settings -> Within Time(Min).
Note: for this option to work you must enable the system setting Send Open/Close With Recent Alarm in System Wide Settings and also enable this setting in SMS Gateway task settings.
Click Save
to save task settings
This section applies to users of the SMS Global Gateway only.
Your company must have an account with SMS Global before you can operate this module with an SMS Global Gateway. Please note that only outbound messaging is supported.

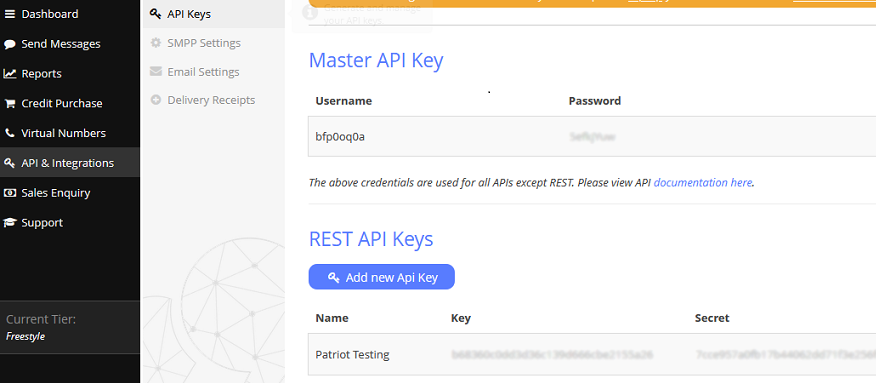

On the API & Integrations tab start by adding a new API Key for Patriot to use to access your account. Note down the Key and Secret fields which must be entered into the corresponding fields in the Patriot SMS Global task settings.

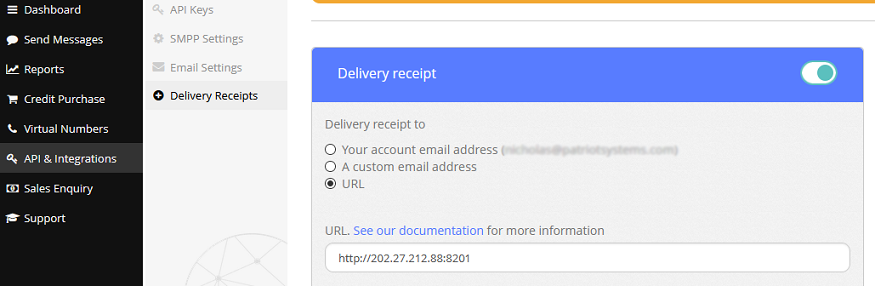

If you wish to receive delivery receipts (confirmation of SMS being received) from SMS Global then you should enable this and enter an HTTP URL which SMS Global can use to HTTP postback to your Patriot Task Service. The URL should specify a TCP port which should be set to a free port on the Patriot Task Server Machine. This port must be configured to accept connections, and routed correctly from your external network firewall. Depending on your server setup, you may also need to add an HTTP Namespace Reservation on the selected port. The same URL must then be entered into the Callback URL Patriot SMS Global Task setting. To test that your Callback URL is accessable enter it into a webbrowser on a computer located outside of your LAN and confirm that a page containing the text "OK" is returned.
This section applies to users of the Clickatell SMS Gateway only.
Your company must have an account with Clickatell before you can operate this module with a Clickatell SMS Gateway. For Platform accounts setup a new SMS integration then follow steps to create an account. Please note two-way messaging is not supported. Once an account is created you change the environment to Production to start sending messages.
Clickatell requires international phone number formats for sending: + (Country Code) (Area Code) (Local number), such as +6421 555 1234 for an NZ mobile or +44 555 1234567 for the UK.

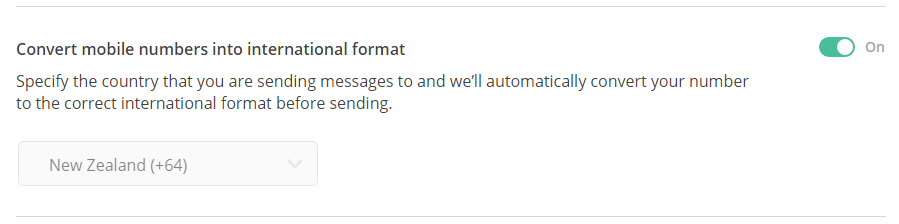

You can set up Clickatell to replace a leading zero with a particular country code, under the optional API settings:
Once Patriot passes the message to the SMS Gateway, it is generally assumed to be successfully delivered. If you need notifications of failures to send from the SMS Gateway (e.g. the Gateway accepts the message but cannot deliver it), you need to enable message callbacks.
With callbacks enabled, the SMS Gateway will notify Patriot when the message has been successfully delivered, or provide details about any failures.
First, turn on Enable Callbacks and set the Local IP Port in the SMS Gateway task settings. Any free port can be used, however this port should be accessible by the SMS Gateway servers (port-forwarded from the external IP of the monitoring station).

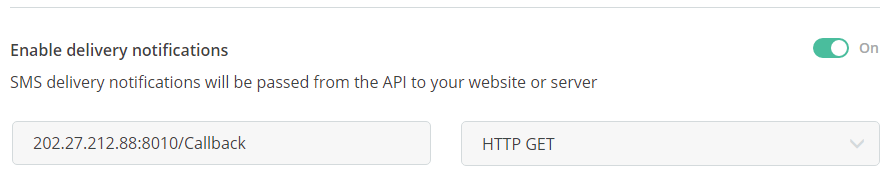

Then enable delivery notifications in the Clickatell website settings. This must be done after the Patriot task is running.
Set the URL to the External IP address of your server followed by the Port number (follow the above example). The Method field can be set to either 'Http Get' or 'Http Post'.
Select 'Save Changes' to ensure your URL validates.

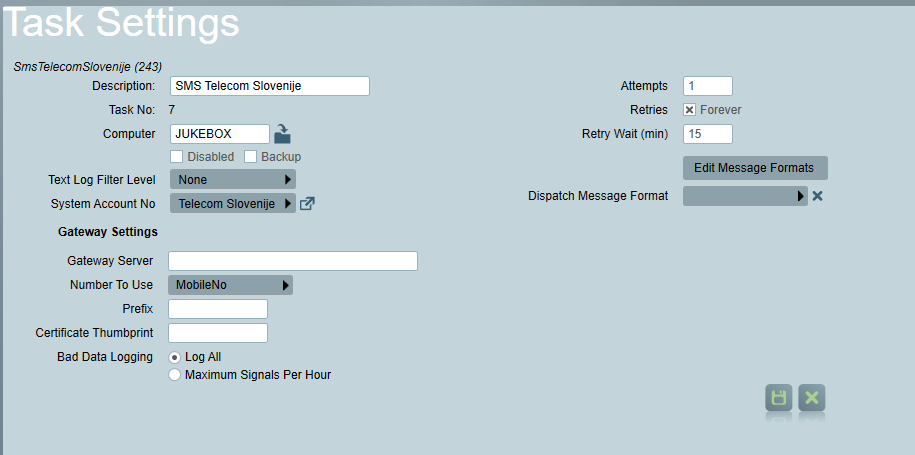

This section applies to users of the Telekom Slovenije SMS Gateway only.
Your company must contact Telekom Slovenije for your SMS gateway's certificate. The provided certificate must be installed on the task's machine. Ensure selected "Local Machine" as the Store Location and "Personal" as the Certificate Store.
The task also requires the certificate's thumbprint. Click here to read about how to retrieve the thumbprint of a certificate.
