System Generated Types

System Generated Types are event types that are internally generated by Patriot. These event types need to be entered into each template with an appropriate Action Plan assigned. The Normally Set As field in the table below should indicate the type of Action Plan expected for each type.

The latest version of the System Generated template can be downloaded for import into Patriot from Receivers & Format Templates.

Inserting a new type

  1. Select the Maintenance Menu Item.

  2. Select Clients.

  3. Select Templates. (If adding System Generated Types to a template).

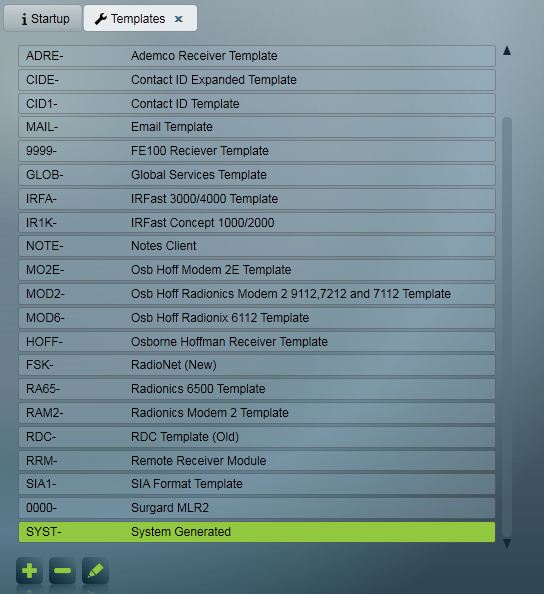

    Templates
    Templates Window

  4. Edit Highlight the template/client record e.g. SYST-0001-01 and click Edit.

  5. Select the Event Types tab.

  6. Add Click Add to Insert a new signal type.

  7. Enter the Type No e.g. 65,001.

  8. Enter the Description e.g. Client late to close.

  9. Click on Action Plan and select the All tab.

  10. Highlight the suggested Action Plan e.g. 'System Alarm' and click Select. (these can also be set to a custom action plan or alternative plan if your system setup requires it.)

    add new type
    Select Action Plan from list

  11. Save Save the new event type.

Repeat from step 6 above until all System Generated Types have been entered.

Save changes to the template.

Copy From

copy You can use the Copy button to copy types from one template/client record to another. To use this feature no type entries may currently exist in the template/client record you are copying into.

List of System Generated Types

Note: you can download the latest version of the system generated template containing all the event types listed here in a format ready for import into Patriot from Receivers & Format Templates.

Type Description Normally Set As
65,000 Receiver in error has restored No Alarm
65,001 Client late to close Alarm
65,002 No signals received from client Alarm
65,003 Receiver failure Alarm
65,004 Reminder processing failure Alarm
65,005 Manual Paging Signal No Alarm
65,006 Pager/Email failure Alarm
65,007 Client unset out of hours Alarm
65,009 IRFast description logged without details Alarm
65,012 Caller ID logged No Alarm
65,020 Polling Restore No Alarm
65,021 Polling Failure Alarm
65,022 IRFast no description logged Alarm
65,023 Sleeping Alarm Reminder No Alarm
65,024 No description (Logged Note) No Alarm
65,025 No description (Operator Log On/Off) No Alarm
65,026 Change of logs (Not used in Version 5 onwards) No Alarm
65,027 Successful Pager/Email send No Alarm
65,028 Alarm no restoral received Alarm
65,029 Bad checksum in signal Alarm
65,030 Comm port error Alarm
65,031 Bad caller ID Alarm
65,032 Bad unrecognised data Alarm
65,046 Start of listen in No Alarm
65,047 End of listen in No Alarm
65,050 Multi-knock No Alarm
65,051 Late to open Alarm
65,052 Early to close Alarm
65,053 Email error Alarm
65,054 Poll signal No Alarm
65,055 Receiver error message Alarm
65,056 Attend report No Alarm
65,057 Publishing failed Alarm
65,058 Publishing restored No Alarm
65,059 Attend report complete No Alarm
65,060 Background Report Begin/End No Alarm
65,061 Task dropped off network Alarm
65,062 Task restored No Alarm
65,063 Slave dropped off network Alarm
65,064 Slave restored No Alarm
65,065 Archive of current log was successful No Alarm
65,066 Archive of current log has failed Alarm
65,067 Archive clean was successful No Alarm
65,068 Archive clean has failed Alarm
65,069 WWW Archive was successful No Alarm
65,070 WWW Archive has failed Alarm
65,071 Automatic Data Backup was successful No Alarm
65,072 Automatic Data Backup has failed Alarm
65,073 Preset Report Failure Alarm
65,080 Received SMS Message Alarm
65,081 Received Telephony Message No Alarm
65,083 No Description (Silent Reminder) No Alarm
65,084 Temporary schedule change logged/ Site on testmode No Alarm
65,085 Telephony restore late to close Alarm
65,086 Database over 80% full warning Alarm
65,087 Sleeping Alarm Reminder Alarm
65,088 Background Silent Reminder No Alarm
65,089 Tandberg Call Failure (Japan Only) Alarm
65,090 Runaway Alarm Alarm
65,091 Backup Server Failure Alarm
65,092 Automated Alarm Handling - Priority Increase Alarm
65,093 GPS Location Logged No Alarm
65,094 Remote Reset Code Issued (UK Only) No Alarm
65,095 Redcare Supervisor Message (UK Only) No Alarm
65,096 CAD Acknowledge No Alarm
65,097 Redcare Ghost Alarm (UK Only) No Alarm
65,098 TellXL Schedule No Alarm
65,099 Mobile Guard Note on Alarm No Alarm
65,100 Outbound Message failed to be Acknowledged in time Alarm
65,102 GSM Error Sending Text Alarm
65,104 Received Email No alarm
65,105 Alarm with GPS information Alarm
65,109 Telephony Error Making Call Alarm
65,110 Task Plugin Received a message No Alarm
65,111 DVR Error Alarm
65,198 Daily Database Prune (used in place of archiving when archiving is disabled) No Alarm
65,199 Periodic Database Prune (used in place of archiving when archiving is disabled) No Alarm
65,200 Daily Archive No Alarm
65,201 Periodic Archive No Alarm
65,202 Full backup No Alarm
65,203 Periodic/incremental backup No Alarm
65,204 Client Alarm Reminder Alarm
65205 Trouble Logging Signal To Data Service Alarm
65,206 Drop Bad Signal - Logged to Windows Event Viewer Alarm
65,209 Automated Export Successful No Alarm
65,210 Automated Export Failure Alarm
65,212 Automated Import Successful No Alarm
65,213 Automated Import Failure Alarm
65,214 Patrol Job Reminder No Alarm
65,215 Manual Arming No Alarm
65,216 Manual Disarming No Alarm
65,217 First Response request received against closed activation Alarm
65,218 Workstation connection with operator holding alarms dropped off network Alarm
65,219 General system message No Alarm
65,220 Clean-Up Notifications Reminder No Alarm
65,250 - 65,299 Reserved for Custom Client Alarm Reminders Unspecified
65,500 Used to signify type number when cancelling sleeping reminder with Log Manual Restore, this is used in place of restore type number. No Alarm
65,502 Action logged to report Guard Tour completed No Alarm
65,503 Action logged to report a single Camera Tour (part of a guard tour) has completed No Alarm
65,504 Last Operator Logged Off Alarm
65,505 Record (Client) Not Found Alarm
65,506 System Error Message Alarm
65,507 Response Time Exceeded Alarm
65,508 Non Monitored Signal Alarm
65,510 Unactioned Attend Alarm Alarm
65,511 Unactioned Attend Restore Restore
65,512 Test mode expired No Alarm
65,514 New Area created automatically Alarm
65,515 Delayed (sleeping) alarm has woken early No Alarm
65,516 Client has been Commissioned No Alarm
65,517 Client has been Decommissioned No Alarm
65,518 Wilsar Job Dispatched No Alarm
65,519 Wilsar Job Updated No Alarm
65,520 Wilsar Job Complete No Alarm
65,521 Wilsar Job Cancelled No Alarm
65,522 Temporary No Signals Change No Alarm
65,523 Call made using autodialler No Alarm
65,524/td> Delayed Auto Complete No Alarm
65,550 Patrol Guard Tour Scan No Alarm
65,551 Patrol Guard Tour Note No Alarm
65,552 Patrol Job Note No Alarm
65,553 Patrol Job Note With Follow-Up Alarm
65,554 Patrol Job Completed No Alarm
65,555 Patrol Job Cancelled No Alarm
