Receivers and Format Templates

Patriot Templates

Templates are available in pdf format for viewing, and also available for download to import into your software.

Also see Template Maintenance.

System Templates

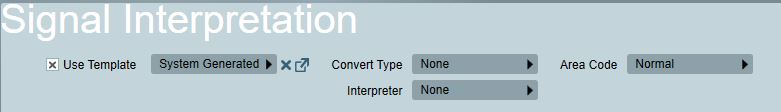

Note: Most of the templates in Patriot are based on "System Generated" template. To catch "unrecognised data" and other system events, the template has to use "System Generated" as its template. This can be done by opening the template as a client, then go to "Event Type" tab, tick the "Use Template" option and select "System Generated" from the templates drop-down list in "Signal Interpretation" section.

Template Settings

Format Templates

Note: Panels that report in Contact ID format which are not listed in the templates below should use the Standard Contact ID Template.

These templates reference the Standard Contact ID Template but are customized specifically to their panel types.

Note: Patriot is not confined to the templates listed in this document, templates are continuously being built and maintained by Patriot staff, if you find a panel isn't supported in the template list or if a template has missing descriptions please contact Patriot Support.

* IRFast Integriti template only have zone definitions for the first three of each module type. If you require more zone definitions please contact Patriot Support.

* IRFast Integriti (abbreviated) template doesn't have full zone definitions for all module types. It only contains old zone definitions for module type 19 (Intelligent Door Reader). This template should only be used when the task setting "Map IR Fast Zones Before System Inputs" is disabled.

CCTV Systems

IR Concept CID Zone Mappings

IR Integriti CID Zone Mappings

Receiver Templates

Lone Worker and Vehicle Tracking

Task Templates
