Patriot can display standard format (e.g. JPEG, MP3, MP4) alarm verification images, audio and video from devices which support sending email links or attachments of these media files, or devices capable of directly transmitting these media file types.
Supported receiver tasks:
To receiver standard media via email your devices must be setup to send event emails to the receiving email address specified in the Email Task and to send emails in the format specified below.

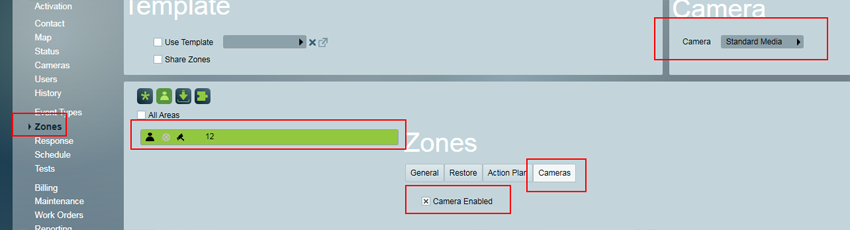

In the client on the zones tab setup the zone and select "Camera: Standard Media"

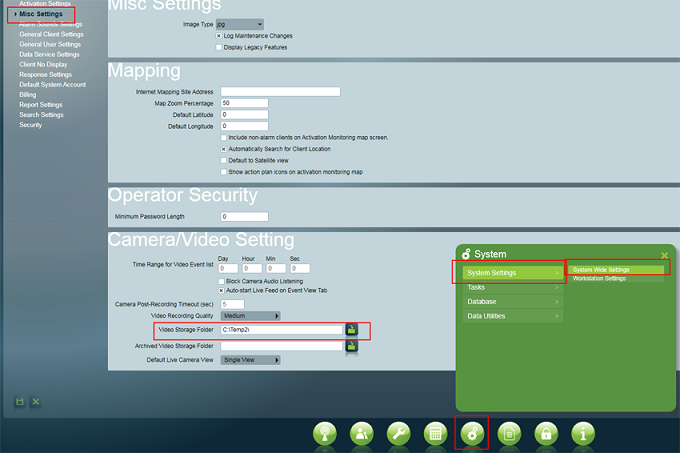

To allow for direct media transmission or email media attachments you will need to set up the Video Storage folder in the SystemWide Settings.
Event emails must be sent with the body of the email in the following format:
client=<client-no> zone=<zone-no> type=<type-no> url=<url>
Note: Only the client-no is required - the others are optional.
Example:
client=1234-01 zone=12 type=123 url=www.a-camera.com/interface
A single image attachment is also supported.
When responding to a Standard Media alarm, the Camera button will be displayed on the activation details screen. Clicking this button will show a list of events related to the activation. If there was a signal received with standard media (image/audio/video) then this media will be displayed or played.
Verification media can only be viewed during the activation itself.
