Security Groups

security menu Security Menu Item -> Operators -> Security Groups

SecurityGroup
Security Group allow you to configure highly customised access rights

Security Groups

Operators who have the same access level can be grouped together, eliminating the need to set each operator’s individual access clearance separately. After a Security Group has been set up, supervisors can then simply select the Security Group from the PopUp list when setting up a new Operator in the Operators Window.

Adding a New Security Group

Add new group button Click the Add button at the bottom left of the Security Groups window. A new list item will appear with an empty form to its right. Fill in the blank text boxes.

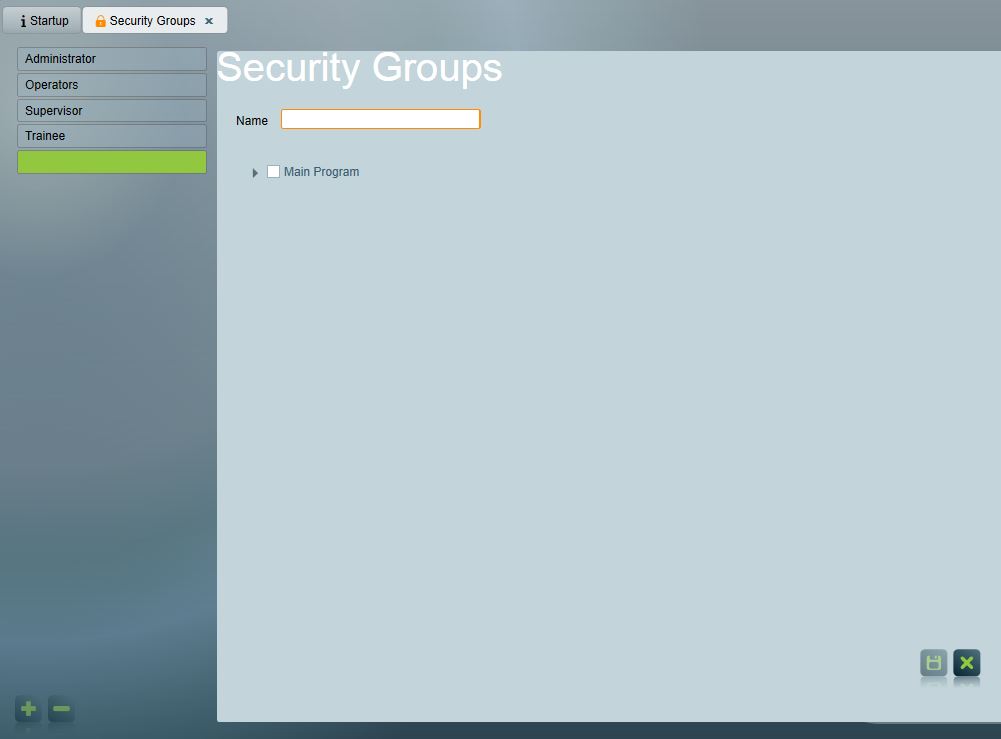

Blank new Operator Security group.

Add new security group

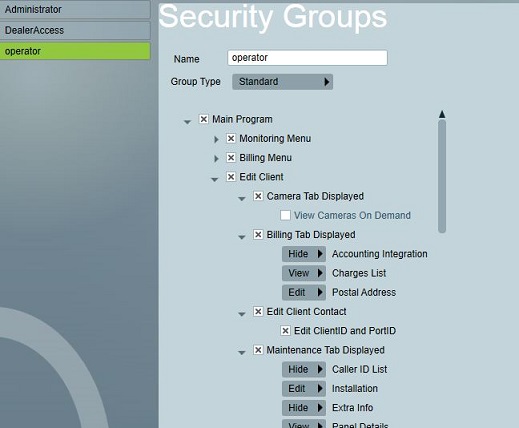

Security Rights

The security rights are categorised into a tree.

Each right may contain other related rights inside it which are related to that area or function.

The root of the tree is Main Program Access, which is required to log in.

The Edit Client right is required to make changes to a client record. The child rights contained within Edit Client allow operators to make changes to the specific areas of the client.

The rest of the rights follow the main menu structure. For example, the security right 'System Menu' -> 'System Settings Menu' -> 'System Wide Settings' allows access to the corresponding menu item 'System' -> 'System Settings' -> 'System Wide Settings'.

Some menu right items also have permissions for the screen opened via the menu. For example, under Monitoring Menu -> Current Activations are rights related to the current activations screen. These rights affect what operators can do once they open the Current Activations screen.

Some client security rights under Edit Client right have three way settings:

Edit - If the security right sets to Edit, it means the security right is assigned and the operator is allowed to edit the context.

View - If the security right sets to View, it means the security right is not assigned and the operator can view the context only.

Hide - If the security right sets to Hide, it means the security right is not assigned and the context is hidden from the operator.

Set the security rights for the new group by expanding the categories in the tree, and checking the box for each right required by your operator group. You must enable a right before enabling rights contained inside the right. For example, the 'Signal Browse Pause' right cannot be assigned unless the 'Signal Browse' right itself is also assigned. In general, the parent rights only give the minimum access possible, and one or more child rights must be added to allow the operator to use the features. When logging in, operators will not see a menu if they have no access to any of the items within it.

save Click the Save button on the form to save the new Security Group

Security Right Definitions

Most security rights are self-explanatory. The following additional information is provided,

Changing Security Group Records

Click to select the Security Group from the list Security Groups Window. Edit the desired fields and click the Save button

Deleting Security Group Records

delete Click to select the Security Group you wish to delete from the list in the Security Groups Window. Click the Delete button.

Note: the delete command cannot be undone so it is advised that you proceed with caution.
