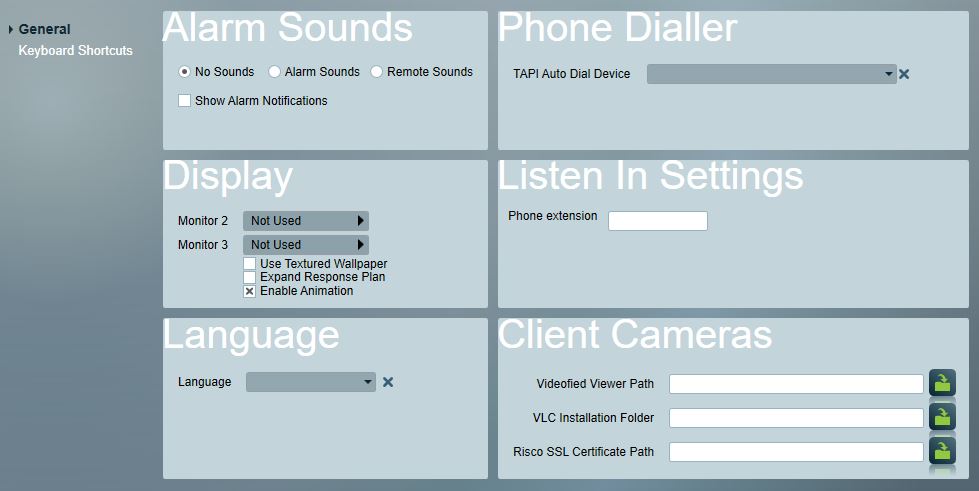

Workstation Settings

system System Menu Item -> System Settings -> Workstation Settings

workstation

Phone Dialler

By selecting a device, the auto dialer feature is enabled. Patriot support both the standard windows auto dialer (analogue) and any other third party TAPI compliant phone systems. The phone dialer is a windows utility that uses a modem or other telephony device to automatically dial a given number on behalf of the operator. If this option is disabled, the phone dialer buttons will have no effect.

Alarm Sounds

If the Enable Alarm Sounds box is checked, alarm sounds (new alarms and pending) are played on this workstation.

Also whenever an error occurs with one of the tasks, Patriot 6 will notify the operator by playing a distinctive sound. The sound that is played must be named SystemAlarm.wav and stored in the installation folder of the client program.

Show Alarm Notifications

If this option is enabled, when a new activation is received while the Patriot Client program is not in focus, a popup notification will appear in the corner of the screen. This makes it easier for an operator to notice an activation if they have alarm sounds turned off, and have a different application open on screen. See System Wide Settings for more details.

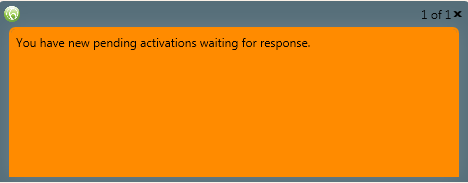

New pending alarm popup notification
Example of a popup notification when a new alarm is received.

Display

Multi Screen

Client Map and / or Cameras can be displayed on additional monitors. These will be displayed when opening an activation.

Use Textured Wallpaper. Window backgrounds will be displayed with additional textural effects. This setting should not be used on machines with inadequate graphics capabilities, or on remote workstations (due to increased data transfer).

Expand Response Plan. The default setting for the display of the response plan on the activation window. There may not be adequate room to display the expanded view on smaller monitors.

Language

Use this drop-down box to select the language for Patriot 6 to translate into. This option will also customize all text within Patriot 6.

Storage

Storage Path

Location of stored media. Where applicable media files will be stored onto a network folder. Eack workstation needs to have the location of this folder enetered. The Media folder is used for storing recorded video and audio clips.

Keyboard Shortcuts

Patriot allows you to configure custom keyboard shortcuts for a workstation. Workstation keyboard shortcuts allow an operator to peform an action (e.g. open current activations, view a user grouping etc.) with a single customisable key press. Refer to Keyboard Shortcuts for more information.

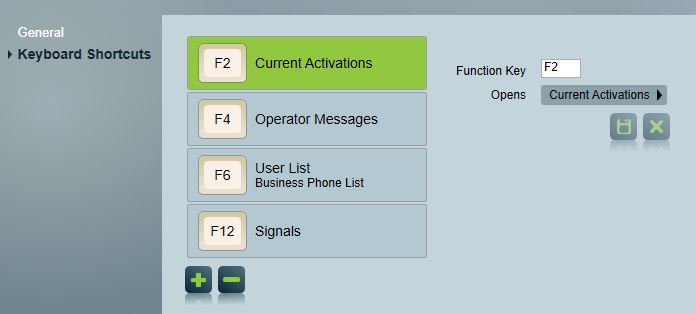

Keyboard Shortcuts
Custom keyboard shortcuts can be added in the Workstation Settings.
