ICA User Setup

This document assumes that the Patriot ICA module has been installed. This document covers setting user access levels and giving users access.

The Internet Client Access (ICA) module allows users access to their site information via the internet using a standard web browser. Patriot contains flexible configuration settings for allowing different levels of access to your users. This works by setting up one or more web-access security group(s) and then assigning one or more of these groups to each user that requires web access.

Create Web-Access Security Group(s)

Security -> Operators -> Security Groups

Web/Mobile Client Security Group

You can insert a new web access security group in exactly the same way you would insert a new operator security groups - the only difference between the two group types is whether you choose to check "Web/Mobile Client" as a supported client app. When you choose "Web/Mobile Client" as the only supported alp, a reduced set of security rights are available, which corresponds to the features currently available via the ICA website. Also note, that there are special considerations to be made when hiding and viewing tabs from the ICA that are listed under Security Right Definitions at operator security group because the ICA website is not an exact mirror of the Windows client interface.

Web Access Level

There are four levels of web access:

• Level 1: Standard

  Read-only access. View general client data and history, and generate client and log reports.

• Level 2: Edit Client

  Adds additional features:

  • Edit client data (such as site contact details, users, schedules, zones, etc.)
  • Create and edit Test Mode.
  • Edit Auto Status Monitoring settings

• Level 3: Extended Access

  As well as the Standard and Edit Client features above, this adds additional features:

  • Add new clients
  • Edit Client Notes
  • Create and edit Work Orders
  • Access to the full range of Reports
  • Access to Dispatch Jobs (requires Dispatch Module).
  • Ability to grant multiple Engineers web access without adding to your license count - see Dealers and Engineers for more information.
• Level 4: Monitoring

  As well as all the features above, this adds additional monitoring features:

  • Current Activations
  • Ability to Sleep Current Activations

Licensing Requirements

Each user that you grant one of four Web Access levels detailed above will count against your license limit. There is an ICA Module corresponding to each Web Access Level. When an ICA Module is added to your license it comes with a user limit and you will be able to grant up to that number of users web access to the level of the ICA Module or to a lower level. If you have multiple ICA Modules on your license then your web access users will be spread between your ICA Module limits such that every user counts against the module limit corresponding to its access level or to a higher level.

For example, if you have the ICA Edit module and the ICA Monitoring module, each with a limit of 5 users then your license could be spread across your web access users in many different ways including:

• 5 users with Monitoring level web access and 5 users with Edit level web access
• 10 users with Edit level web access
• 10 users with Standard level web access
• 5 users with Extended level web access, 1 user with Edit level web access and 4 users with Standard level web access
• 1 user with Monitoring level web access, 1 user with Extended level web access, 1 user with Edit level web access and 7 users with Standard level web access
• etc.

The Web Access Level is set on the Security Group. When a user is assigned multiple security groups with different web access levels then the user's licensed web access level is determined by the assigned security group with the highest access level.

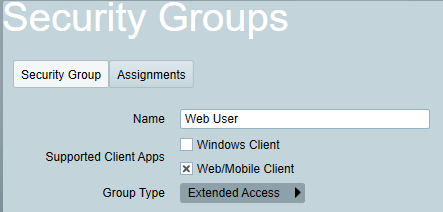

Web Access level is controlled by the Group Type setting of the Security Group.

To see exactly which users and operators count towards your usage, you can click on one of the ICA modules in the Help Menu.

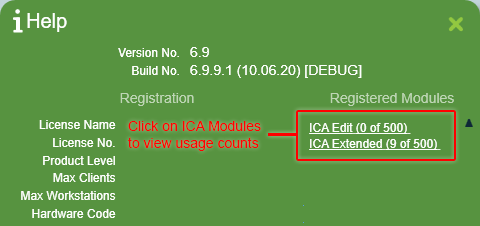

ICA Usage counts can be accessed via the Help Menu.

This will display all the users and operators listed beneath each Web Access Level heading. Please beware that operators with Windows Client & Web Client access always count against the Monitoring Access level total.

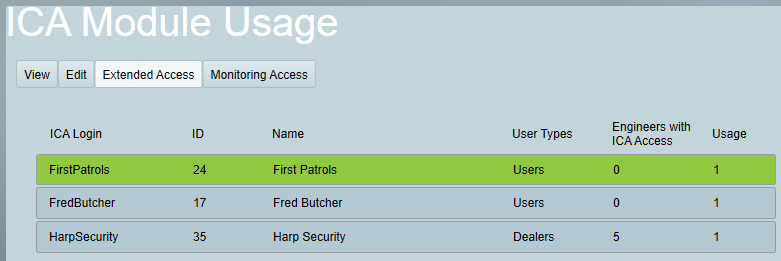

Extended Access usage count. Notice that 5 engineers only add 1 to the total.

Remote Action Plan Filtering

Remote Action Plan Filtering configured through security groups applies to web/mobile client users only (windows client operator action plan filtering of pending activations is configured via operator preferences) and will determine what historic signals and activations are displayed to the web user. You can choose to exclude some action plans, or to only include some action plans. For performance reasons, pick the option which requires the fewest action plans to be selected.

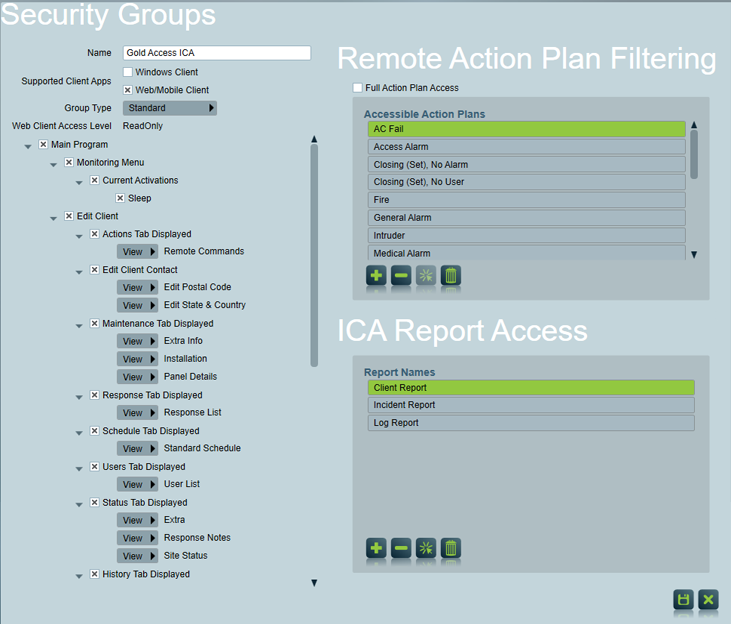

The example "Gold Access ICA" group gives members full access to all ICA features.

ICA Report Access

To allow reporting in ICA, you should assign the security group rights for Report Shortcuts:

You can also decide which specific reports each security group has access to, out of the following options:
