Standard Media Camera Interface

Patriot can receive alarm events and verification images from cameras via Email

Requirements

Camera's using this interface must support email event notifications.

Your Patriot license must include the "Email Receiver" and "Standard Media" modules.

Task Setup

An Email Task must be set up in receiving mode with the "Standard Media" format selected as the receiving message type.

Camera Setup

Cameras must be setup to send event emails to the receiving email address specified in the Email Task and to send emails in the format specified below.

Client Setup

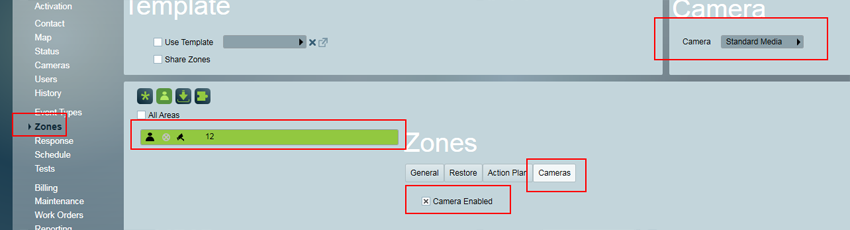

In the client on the zones tab setup the zone and select "Camera: Standard Media"

Client zone Standard Media

Email Format

Event emails must be sent with the body of the email in the following format:

client=<client-no> zone=<zone-no> type=<type-no> url=<url>

Note: Only the client-no is required - the others are optional.

Example:

client=1234-01 zone=12 type=123 url=www.a-camera.com/interface

A single image attachment is also supported.

Image Attachment Setup

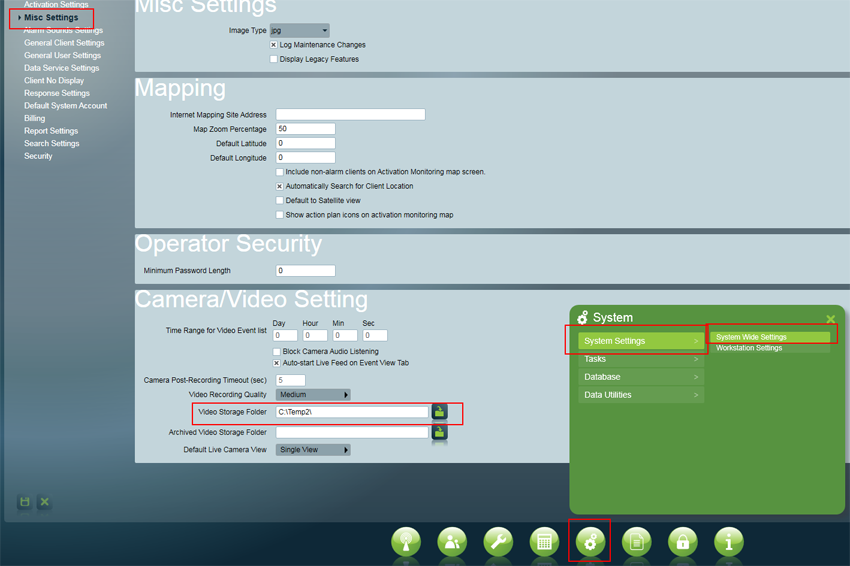

To allow for a image attachment in the email to be presented to the operator you will need to set up the Video Storage folder in the SystemWide Settings.

Client zone Standard Media

Viewing Alarm Events

When responding to a Standard Media alarm, the Camera button will be displayed on the activation details screen. Clicking this button will show a list of events related to the activation. If there was an image and/or a URL in the event email then these will be displayed.

Verification images can only be viewed during the activation itself.
