ARKNAV Life Watch Module Setup

ARKNAV's range of Life Watch (DX) 3G/GPRS personal tracker/lone worker devices are fully supported in Patriot 6 and above when the Life Watch module is added to your registration. Patriot can receive alarm/status events, and provides tracking functionality via the mobile client mapping interface. ARKNAV's tracking devices can additionally commuicate with Patriot via SMS and/or audio Telephony when the appropriate module is registered.

Prerequisties

* Reduced functionality is avaliable via Patriot's SMS and/or Telephony modules, complete functionality requires all three modules.

Setup the Life Watch Task

System Menu Item→Tasks → Task Settings

Please read Task Settings for general information about adding tasks.

add Add a new task to the list in the Task Settings window. Double click on Life Watch in the drop down list in the details area of the window.

next

Click the next button to continue. The Life Watch task settings form will appear.

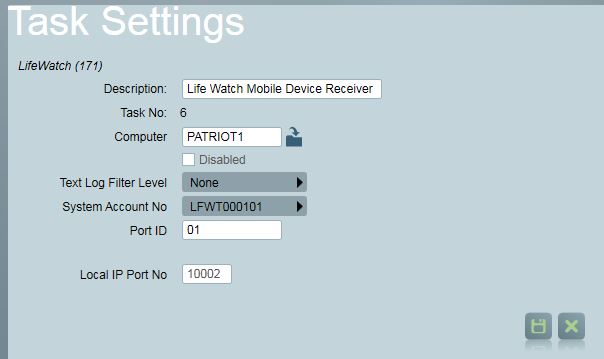

Life Watch Task Settings

Life Watch Task Settings

Life Watch Task Settings

Enter a Description of the task, e.g. Life Watch Mobile IP Device Receiver

The Task No. will default to the next free task number.

Select the Computer name of the machine that this task is to be run on. This will default to the computer you are currently on, a copy of the Patriot Task Service must be installed and running on the chosen machine.

Enter a System Account No. The system account number is used to log error and system generated signals against. This should default to LFWT000101, if it hasn't, enter this in now. If this account does not already exist you will need to set it up as a template.

Enter the 2 digit Port ID that signals received by this task will be logged against.

Text log Filter Level can be use for task troubleshooting purposes. It should be left at the default None.

Local IP Port No should be set to a free port on the Patriot Server Machine. This port must be configured to accept connections, and routed correctly from your external network firewall.

SaveSave Click Save to save Life Watch task settings

Receiving SMS

If receiving SMS events from a Life Watch mobile device is a requirement then you must additonally setup the GSM Module and ensure that the Recv Message Type task setting is set to Life Watch.

Receiving Phone Calls

If receiving Telephony events (phone call audio and event logging) from a Life Watch mobile device is a requirement then you must additonally setup the Telephony Module. Please note that an Asterisk based IP PABX is a requirement of Patriot's Telephony module. Patriot will provide a standard lone worker device dial plan with functionality for logging alarm events and recorded messages to the Patriot database. If you would like to request a copy of the standard dial plan, or if you would like to enquire about customised dial plan implementations, please log a case with Patriot Support explaining your requirements.

Patriot Client Setup

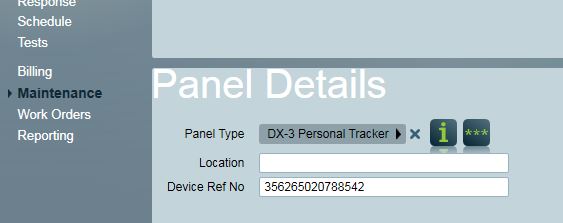

A Patriot Life Watch client is inserted in the normal way from the Add New Client dialog in the Clients menu. Any client ID* can be chosen when setting up a Life Watch client, but your mobile device's IMEI serial number must be entered into the Device Ref No field on the Maintenance tab.

* Except when operating the Telephony module for inbound calling. In this case the client ID must be setup in accordance with the installed Telephony dial plan.

Set device IMSI as client device ref.

Patriot uses the IMEI number of the mobile device to match device signalling to a client file.

Events

Clients for this task need to be set up with Life Watch Event Type Template (LFWT-01). A copy of this template, ready for Patriot import, is avaliable from Receivers & Format Templates.

Mapping

If your mobile device is capable and configured to send GPS tracking data via GPRS/3G/SMS, and you require live tracking functionality then you should check the Mobile Client check box on the Mapping tab. Please refer to Patriot's mapping module documentation for more information. If you do not have a Mapping module registered then you should refer to Lite Mapping.

Mobile Client Mapping

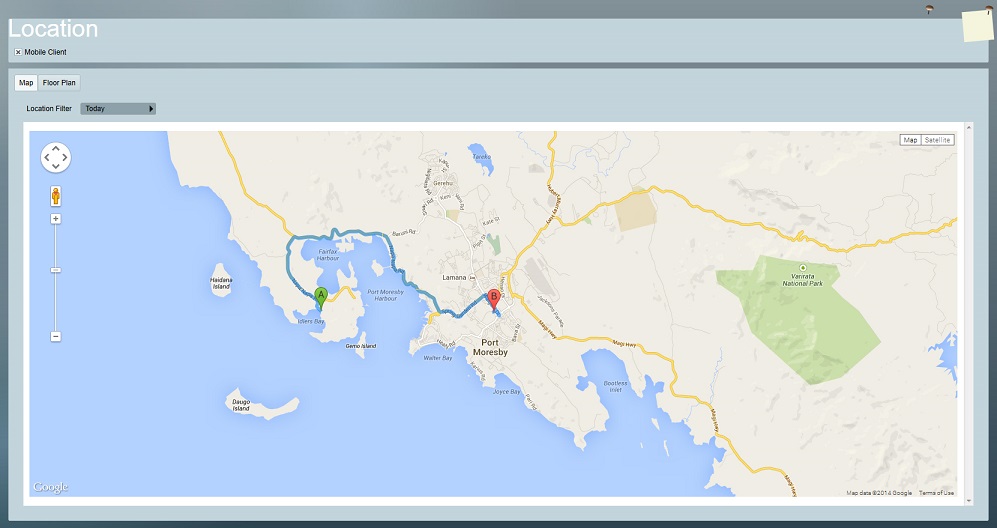

Tracking a Life Watch mobile device from the Client Map tab.
